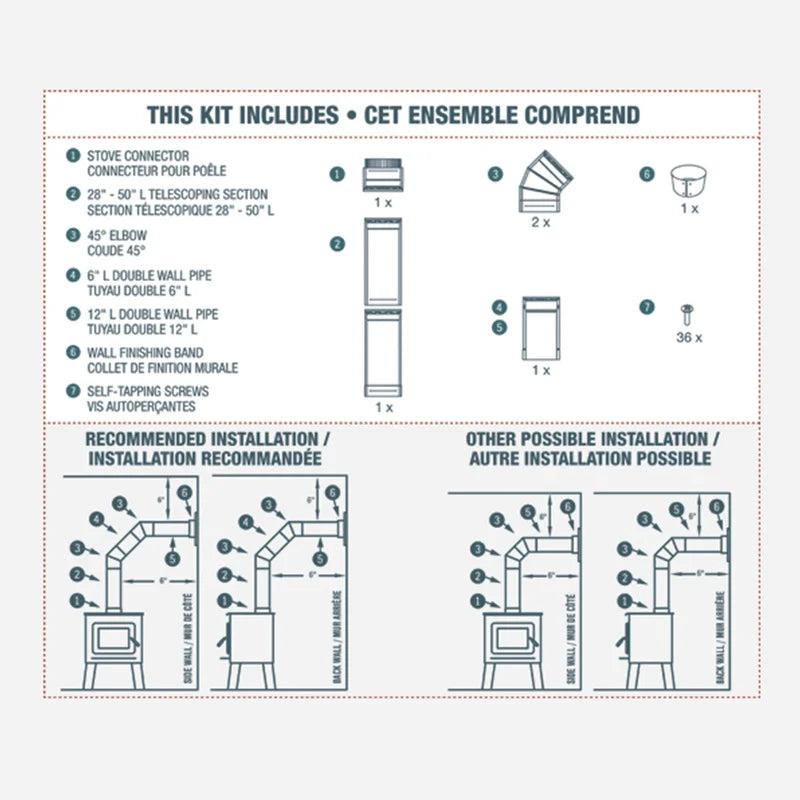

  • 6 inch double wall to-the-wall kit includes diagram
1 2

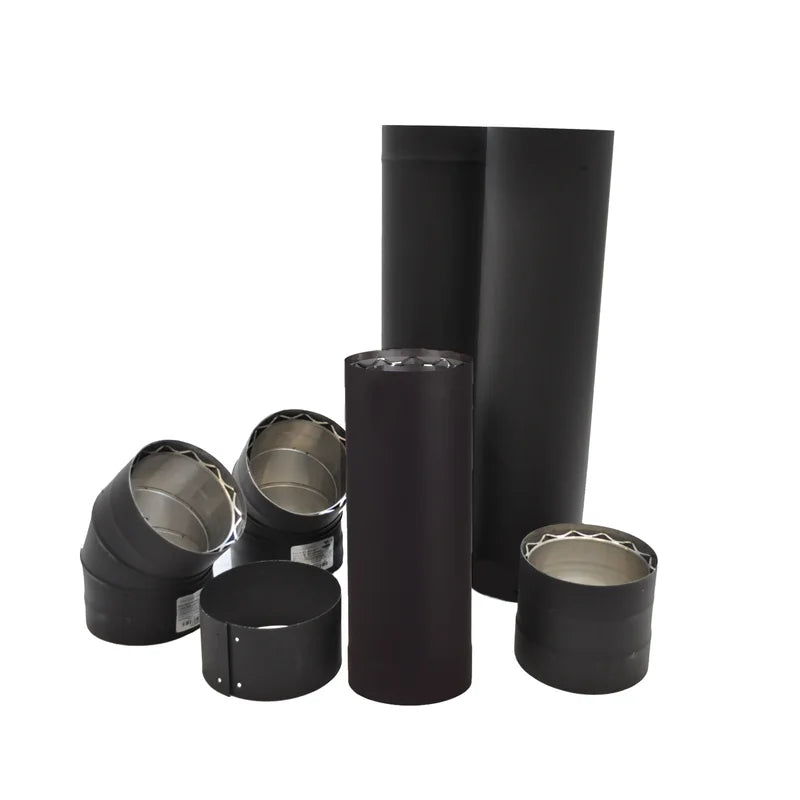

To-The-Wall Double Wall Stove Pipe Kit 6" — Fits Any Wood Stove with 6" Flue Collar — VODBKTW06

To-The-Wall Double Wall Stove Pipe Kit 6" — Fits Any Wood Stove with 6" Flue Collar — VODBKTW06

$359.00 USD
On backorder — Available Dec 17, 2026 Free cancellation until it ships
Model: VODBKTW06
Questions about this product? Email info@stovesource.com Mon–Sun 7am–11pm ET
  • No Sales Tax
  • Free Shipping
  • Price Match
  • Secure Checkout
Not sure how much pipe you need? The chimney kit builder builds the full parts list for your house in 2 minutes.

Complete 6" double-wall connector pipe kit for venting a freestanding wood stove horizontally out through an exterior wall.

Fits any wood stove with a 6" flue collar, regardless of brand. Measure your stove's flue outlet — if it's 6", this kit connects. The included appliance connector mates the Vortex pipe to your stove collar; build the rest of the run from Vortex components rather than mixing brands.

Vortex double-wall is listed at 6" clearance to combustible walls and 6" to combustible ceilings — versus 18" for single-wall — and is required by many stove manuals to achieve their listed reduced clearances. Because this kit includes an adjustable section, the 5" reduced clearance does not apply here; plan the run at 6". Listed to ULC S641; install per NFPA 211 (US) or CSA B365 (Canada).

Full details ↓

Product Documents

View full details
Free Shipping
No Sales Tax
Authorized dealer

Overview

Complete 6" double-wall connector pipe kit for venting a freestanding wood stove horizontally out through an exterior wall.

Fits any wood stove with a 6" flue collar, regardless of brand. Measure your stove's flue outlet — if it's 6", this kit connects. The included appliance connector mates the Vortex pipe to your stove collar; build the rest of the run from Vortex components rather than mixing brands.

Vortex double-wall is listed at 6" clearance to combustible walls and 6" to combustible ceilings — versus 18" for single-wall — and is required by many stove manuals to achieve their listed reduced clearances. Because this kit includes an adjustable section, the 5" reduced clearance does not apply here; plan the run at 6". Listed to ULC S641; install per NFPA 211 (US) or CSA B365 (Canada).

This is connector pipe, not chimney. The pipe itself must not pass through the wall — a listed wall thimble and chimney section are required at the penetration. A pipe hanger is required on any horizontal run over 4 ft, plus one for every 4 ft after that. Where the pipe clearance and the appliance clearance differ, always use the larger. Always confirm the connector pipe type and clearances specified in your stove's installation manual.

Ships via standard parcel. Sold as a complete to-the-wall kit.
