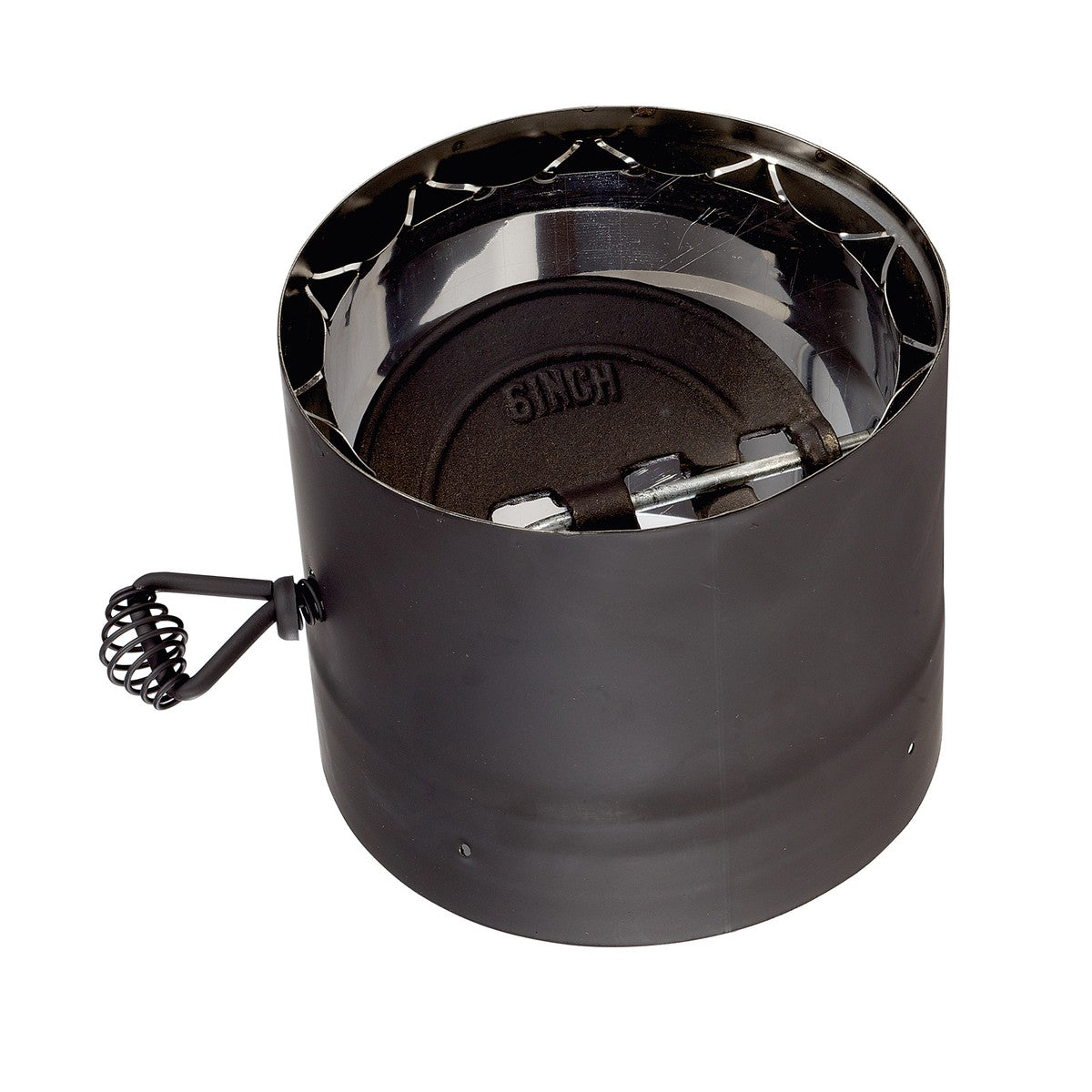

Vortex Double Wall Stove Pipe Section with Damper 6" — VOD0190

6" Vortex double-wall black stove pipe section with an integrated damper (7" outer diameter), fitted between the stove and the first pipe section.

Fits any wood stove with a 6" flue collar, regardless of brand. Measure your stove's flue outlet — if it's 6", this fits a Vortex connector run. Double-wall pipe is system-specific at the joints, so build the whole run from Vortex components rather than mixing brands.

The damper slows the heat flow leaving the stove, giving you more control where draft is excessive. The stainless-steel inner wall uses an exclusive thermal weave, joints are laser-welded, and the metallic black powder coat resists corrosion.

Vortex double-wall is listed at 6" clearance to combustible walls and 6" to combustible ceilings — versus 18" for single-wall — and is required by many stove manuals to achieve their listed reduced clearances. An assembled run with no adjustable section may be installed at 5". Listed to ULC S641; install per NFPA 211 (US) or CSA B365 (Canada).

This is connector pipe, not chimney. It must not pass through a wall, ceiling, floor, attic or closet, and must not be enclosed. Where the pipe clearance and the appliance clearance differ, always use the larger. Always confirm the connector pipe type and clearances specified in your stove's installation manual.
