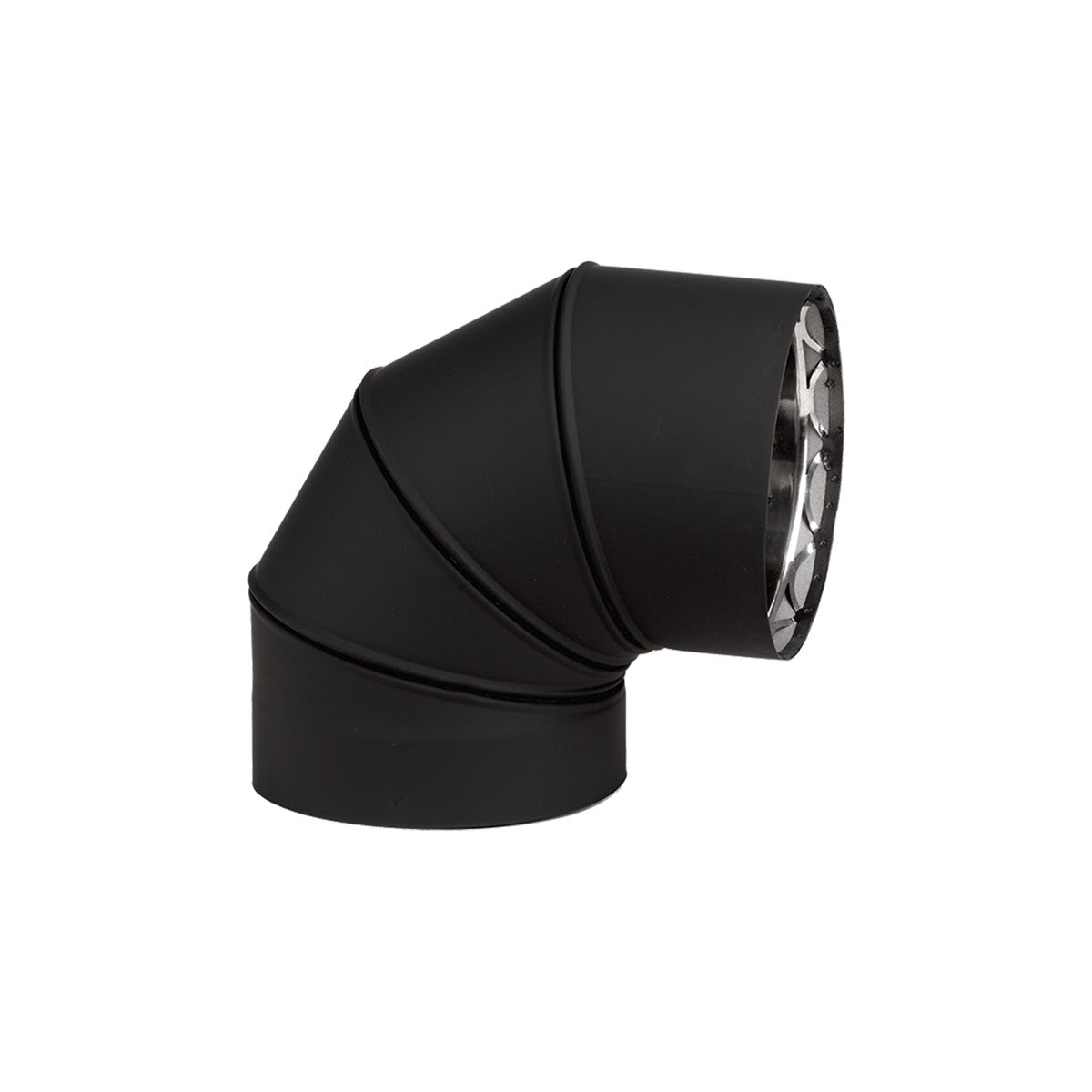

90° Elbow 6" Vortex Double Wall — VOD0093

90° elbow for 6" Vortex double-wall black pipe (7" outer diameter), used when the connector run needs a right-angle offset between the stove and the chimney.

Fits any wood stove with a 6" flue collar, regardless of brand. Measure your stove's flue outlet — if it's 6", this fits a Vortex connector run. Double-wall pipe is system-specific at the joints, so build the whole run from Vortex components rather than mixing brands.

The stainless-steel inner wall uses an exclusive thermal weave that promotes even airflow and lower outer-wall temperatures. Joints are laser-welded and the metallic black powder coat resists corrosion.

Vortex double-wall is listed at 6" clearance to combustible walls and 6" to combustible ceilings — versus 18" for single-wall — and is required by many stove manuals to achieve their listed reduced clearances. An assembled run with no adjustable section may be installed at 5". Listed to ULC S641; install per NFPA 211 (US) or CSA B365 (Canada).

This is connector pipe, not chimney. It must not pass through a wall, ceiling, floor, attic or closet, and must not be enclosed. A pipe hanger is required on any horizontal run over 4 ft, plus one for every 4 ft after that. Always confirm the connector pipe type and clearances specified in your stove's installation manual.
