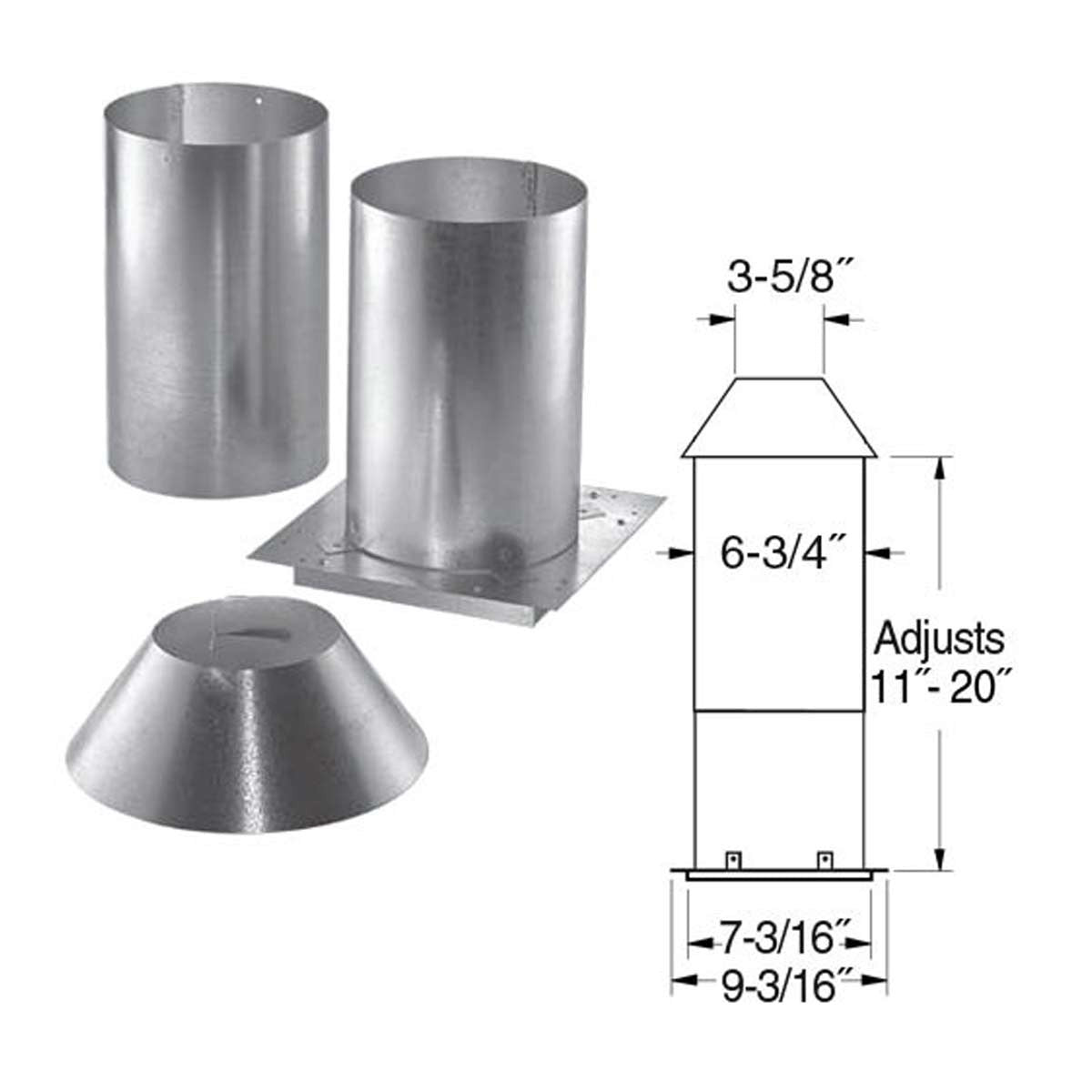

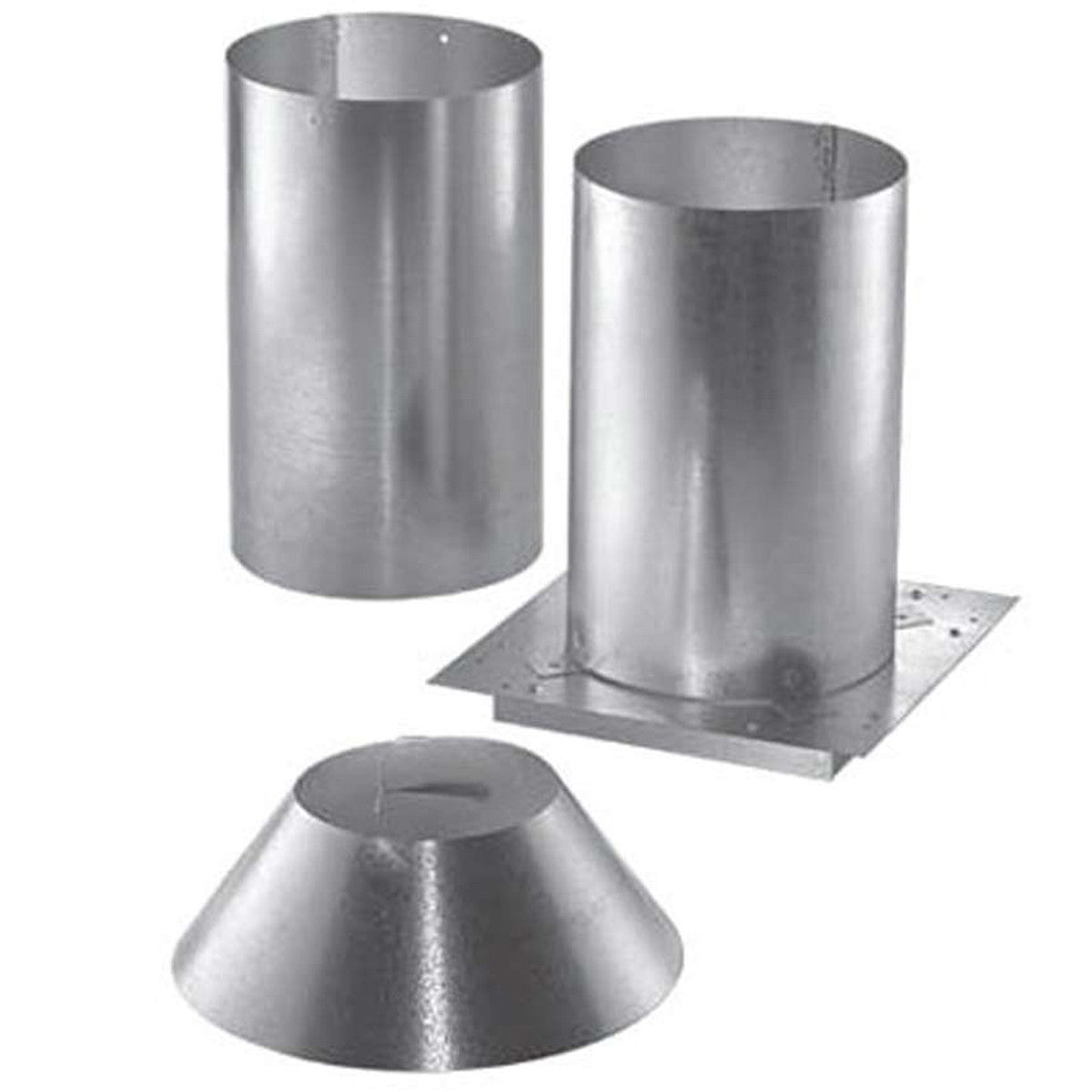

DuraVent 3" PelletVent Pro Attic Insulation Shield

Keep attic insulation off your 3" pellet vent.

Required where the vent passes through an attic, the shield sits above the ceiling firestop and holds insulation and debris back from the pipe, maintaining 1" clearance to combustibles. Galvanized steel.

Install it with the 3" ceiling firestop spacer, then continue up with DuraVent 3" PelletVent Pro straight pipe to the roof flashing.

About PelletVent Pro: DuraVent PelletVent Pro is double-wall Type L/PL pellet vent — a stainless steel inner wall inside a Galvalume outer wall, listed to UL 641 with 1" clearance to combustibles in the USA and rated for continuous flue temperatures up to 570°F. It is made for stoves and inserts burning wood pellets, corn and other biofuels, or oil. DuraVent parts use a twist-lock joint that connects only to other DuraVent PelletVent Pro components — they will not join another brand's pellet vent, so build the whole run from PelletVent Pro.

3" or 4"? 3" PelletVent Pro suits typical short pellet stove runs. ComfortBilt notes that 4" allows longer runs, and recommends 4" on its stoves when the flue height is over 12 ft, above 5,000 ft elevation, or when the layout goes past the 3" vent-length limit. Your stove's manual sets the size it requires. Shop all pellet stoves.

Specifications
