Overview

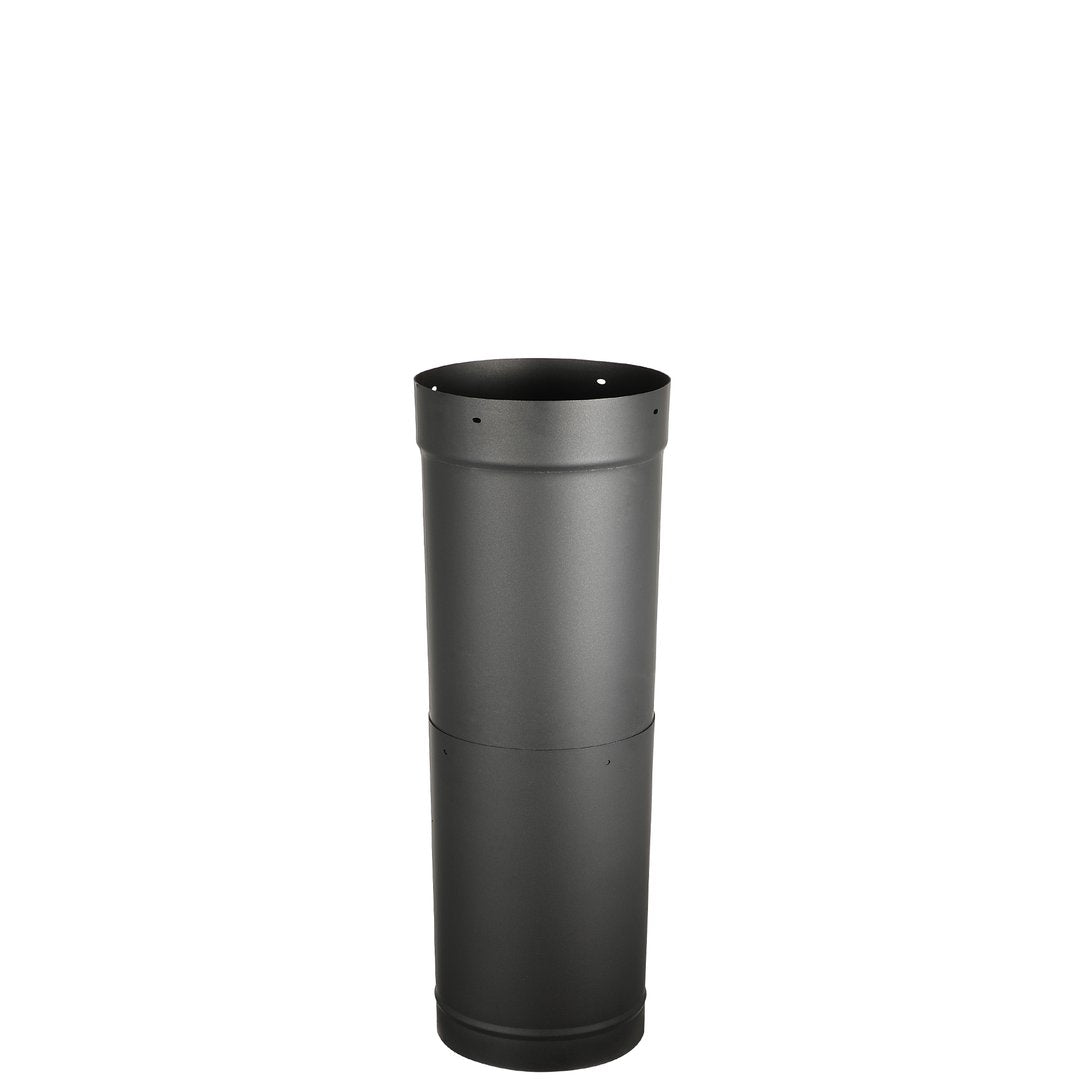

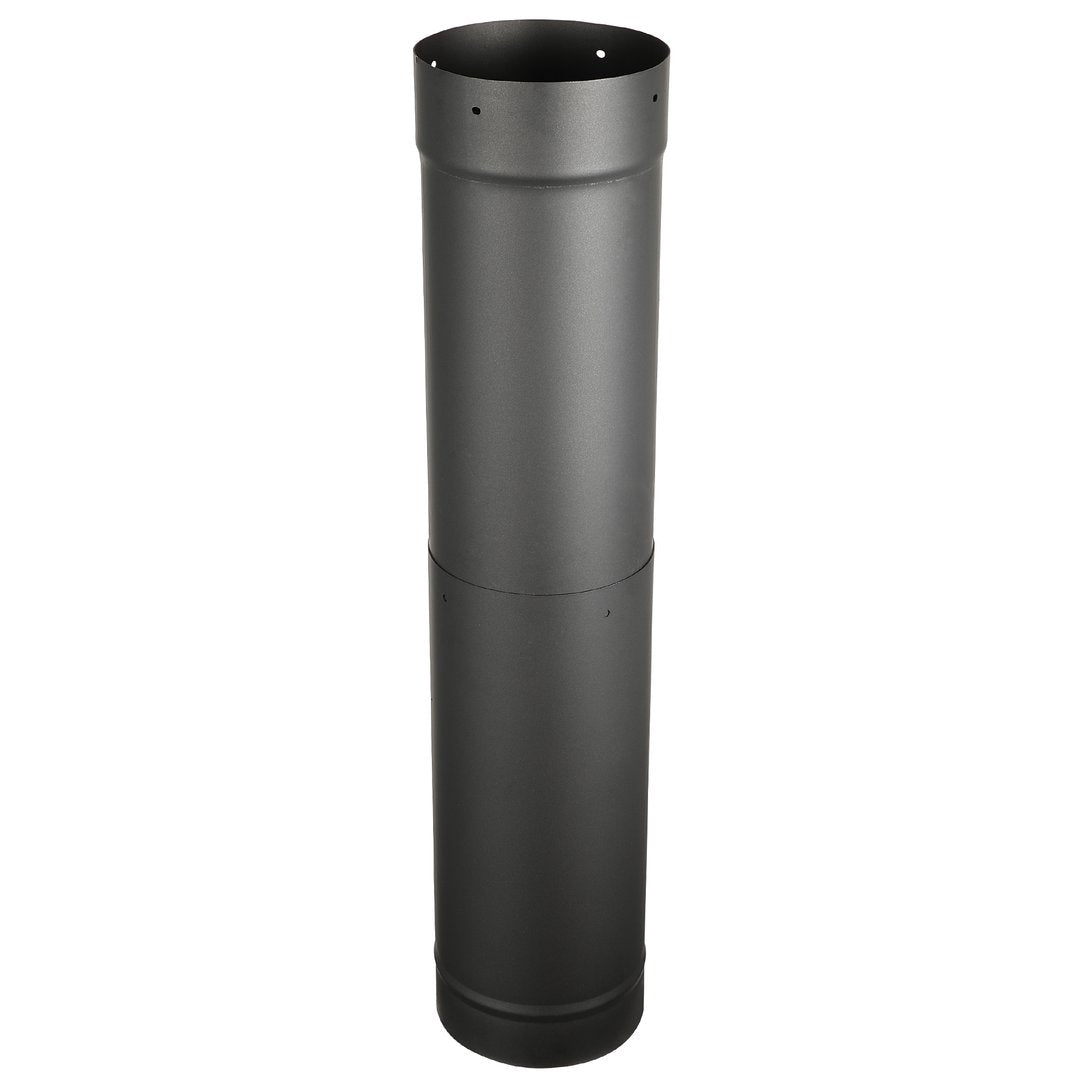

Adjustable 6" black stove pipe that slides to the exact length between your stove and the ceiling support box or wall thimble.
A telescoping section takes the measuring and cutting out of a stove pipe install: it slides in and out to close the gap between fixed sections and the chimney, and makes it easier to remove the pipe for cleaning. Choose 18"–30" for shorter runs or 38"–70" for tall ceilings. Built from 21 gauge steel with high-temperature black paint; one telescoping section per order. It cannot be cut down.
Single wall stove pipe is the exposed connector between your stove and the chimney. The run goes stove flue collar → stove adapter → single wall pipe, elbows and telescoping sections → stove pipe adapter at the ceiling support box or wall thimble, where the insulated Class A chimney starts and carries the smoke through the ceiling, roof or wall.
Specifications
| Spec | Value |
|---|---|
| Inside diameter | 6" |
| Material | 21 gauge steel, high-temperature black paint |
| Clearance to combustibles | 18" |
| Use | Indoor only |
| Adjustable length | 18"–30" or 38"–70" |
Fits wood stoves with a 6" flue collar, including our wood stoves.
Clearance: ComfortBilt specifies 18" clearance to combustibles (walls, ceilings, wood mantels, etc.) for AllFuelHST single wall pipe. That is far more than insulated Class A chimney needs, which is why single wall pipe must stop at the ceiling support box or wall thimble and never pass through a wall or ceiling itself. Indoor use only.
System note: The AllFuelHST stove pipe adapter and AllFuelHST Class A chimney parts connect only to other AllFuelHST parts. Use the AllFuelHST adapter to join this pipe to an AllFuelHST 6" chimney.
Also needed
- AllFuelHST 6" single wall stove adapter
- AllFuelHST 6" single wall stove pipe (12"–48" lengths)
- AllFuelHST 6" single wall 45° / 90° elbows
- AllFuelHST 6" stove pipe adapter to Class A chimney
- AllFuelHST 6" Class A ceiling support box
- AllFuelHST 6" Class A wall thimble
- AllFuelHST 6" Class A chimney pipe
- Class A chimney pipe and ceiling support boxes
