AllFuel HST 6" Black Single Wall Stove Pipe Elbow

6" black single wall elbows to offset around obstacles or turn the stove pipe toward a wall thimble.

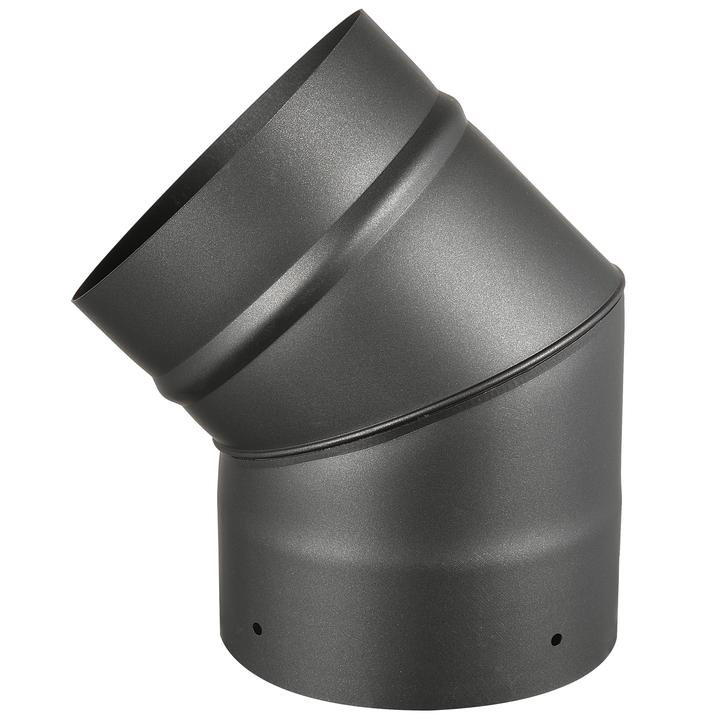

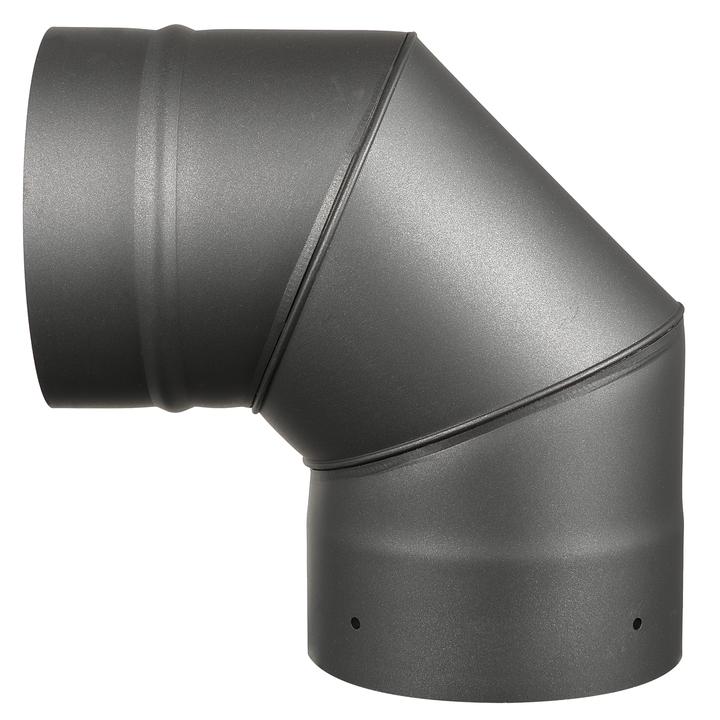

Use a 45° elbow (usually in pairs) to jog the pipe around a beam or line it up with the ceiling support box, or a 90° elbow to turn a rear or top vent toward a through-the-wall chimney. Welded seams, pre-drilled screw holes and high-temperature black paint; one elbow per order.

Single wall stove pipe is the exposed connector between your stove and the chimney. The run goes stove flue collar → stove adapter → single wall pipe, elbows and telescoping sections → stove pipe adapter at the ceiling support box or wall thimble, where the insulated Class A chimney starts and carries the smoke through the ceiling, roof or wall.

Specifications

Fits wood stoves with a 6" flue collar, including our wood stoves.

Clearance: ComfortBilt specifies 18" clearance to combustibles (walls, ceilings, wood mantels, etc.) for AllFuelHST single wall pipe. That is far more than insulated Class A chimney needs, which is why single wall pipe must stop at the ceiling support box or wall thimble and never pass through a wall or ceiling itself. Indoor use only.

System note: The AllFuelHST stove pipe adapter and AllFuelHST Class A chimney parts connect only to other AllFuelHST parts. Use the AllFuelHST adapter to join this pipe to an AllFuelHST 6" chimney.

Also needed

• AllFuelHST 6" single wall stove adapter
• AllFuelHST 6" single wall stove pipe (12"–48" lengths)
• AllFuelHST 6" telescoping single wall stove pipe
• AllFuelHST 6" stove pipe adapter to Class A chimney
• AllFuelHST 6" Class A ceiling support box
• AllFuelHST 6" Class A wall thimble
• AllFuelHST 6" Class A chimney pipe
• Class A chimney pipe and ceiling support boxes
