ComfortBilt HP22 Pellet Stove

The ComfortBilt HP22 pellet stove is a 24"-wide, bay-window model from ComfortBilt's HP line. It heats up to 2,800 sq ft and delivered 9,696 to 40,689 BTU/h in EPA testing. Its 55 lb hopper (40 to 45 lb usable) runs up to 20 hours on the lowest setting. It is EPA 2020 certified at 1.01 g/h with a tested efficiency of 80.5% (HHV). Automatic ignition, a room blower, a programmable control panel and a remote are standard. It vents through 3" pellet pipe and is approved for mobile homes with an outside air connection. Choose Black, Burgundy or Golden Brown, each with or without stainless window trim; the stove behind the finish is the same.

Who the HP22 is for

• Ranches, two-story homes and open floor plans up to about 2,800 sq ft, with the stove in the main living area.
• Basements or additions where you want steady, thermostat-controlled heat and a once-a-day refill.

ComfortBilt's 2,800 sq ft rating assumes mild weather; climate, insulation and layout move the real number. The HP22 needs electricity, so keep another heat source for power outages.

Hopper, burn time and heat output

The 55 lb hopper takes a full 40 lb bag with room to spare. ComfortBilt rates it at up to 20 hours on heat level 1; on the higher levels in cold weather, expect to fill it once or twice a day. If you want fewer refills, the ComfortBilt HP22N is the same stove with an 80 lb hopper.

The HP22's output range is what makes it easy to live with. At 9,696 BTU/h it idles lower than the HP21 (12,349) or the HP61 (17,617), so it can hold a room steady in fall and spring without overheating it, then climb past 40,000 BTU/h on the coldest nights. Turn on ECO in Temp mode and the stove will shut off at your set temperature and re-light when the room cools (more restarts mean more igniter wear).

Controls, remote and thermostat

The control panel runs four modes: Manual (heat levels 1 to 5), Temp (set 61°F to 82°F and the stove adjusts itself from its room sensor), Weekly (a 7-day schedule with up to four periods a day) and Thermostat (a wired wall thermostat lights and stops the stove). A sleep timer, child lock and a remote that works from up to 10 ft are included.

For a thermostat that reads the temperature where you sit, add the ComfortBilt CB3002 wireless remote thermostat. For phone control, the BC Innovate WiFi module fits stoves with the newer 4-pin control panel; check the back of your panel before ordering.

Maintenance

Plan on a few minutes a week: pull the scraper rod to clean the heat tubes, empty the ash pan, and open the tool-free magnetic side panels for deeper cleaning. The free ComfortBilt B67C vent cleaning kit handles the seasonal vent brushing.

HP22 vs. HP22N vs. HP61

Figures from each owner's manual:

↔ Swipe the table to see more →

The HP22N has the same EPA test results as the HP22 and adds 25 lb of hopper, the pick if refilling is your main complaint. The HP61 carries a higher 3,000 sq ft rating with a similar top output, but it does not turn down as far, so the HP22 is the better match when the stove also has to run gently in shoulder seasons.

Venting and installation

The HP22 has a 3" exhaust, centered 12" above the floor, and a 2" air intake. Connect a 3" appliance adapter to the exhaust, then run listed Type L or PL pellet vent; our ComfortBilt / DuraVent 3" pellet vent kit covers a standard through-wall install. The HP22 manual's main rules:

• Use 4" vent above 5,000 ft elevation, or with more than one tee or more than 180° of elbows.
• Keep the run short: the maximum equivalent vent length is 15 for 3" pipe and 25 for 4" (a 90° elbow counts as 5 ft of horizontal pipe).
• No more than 4 ft of horizontal run, rising 1/4" per foot. At least 3 ft of vertical rise is recommended so the stove drafts naturally in a power outage.
• Clearances to combustibles: 2" from the back wall to the stove back, 5" to the rear corners and 7" to side walls (see the clearance table below).
• Mobile homes need an outside air connection, and the stove bolted down and grounded to the chassis. Never install in a bedroom.

Our pellet stove venting guide walks through through-wall and vertical layouts.

Floor protection

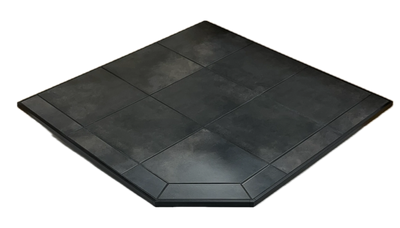

Unless the stove sits on a non-combustible floor, it needs a non-combustible floor protector under the stove that extends at least 6" in front of the glass and 6" past each side, and 2" beyond an inside clean-out tee. The HP22 is 24" wide, so the minimum pad width is 36": the ComfortBilt 36" hearth pad meets it exactly for flat-wall installs, and the ComfortBilt 40" corner hearth pad gives more margin in a corner. The HP22 + hearth pad combo bundles the stove and pad and saves $249. See all hearth pads or our hearth pad guide.

Why buy the ComfortBilt HP22 from StoveSource

• No Sales Tax in any state.
• Free shipping on orders over $250 to the lower 48. ComfortBilt stoves ship fast: Ships in 1–2 days.
• Free ComfortBilt B67C vent cleaning kit with your stove.
• Authorized ComfortBilt dealer, with ComfortBilt's warranty: 1 year on electrical parts, the burn pot and labor, and 3 years on the steel chassis and burn chamber.
• Price match guarantee.
• Help with sizing, venting and clearances: call 1-888-914-0022.

Parts for this stove: ComfortBilt HP22 replacement parts — igniters, burn pots, blowers, gaskets and more.
