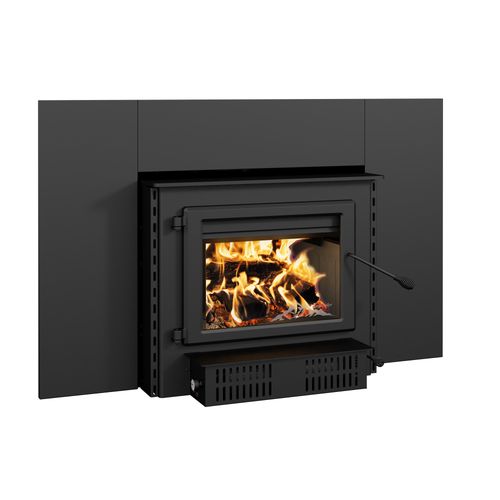

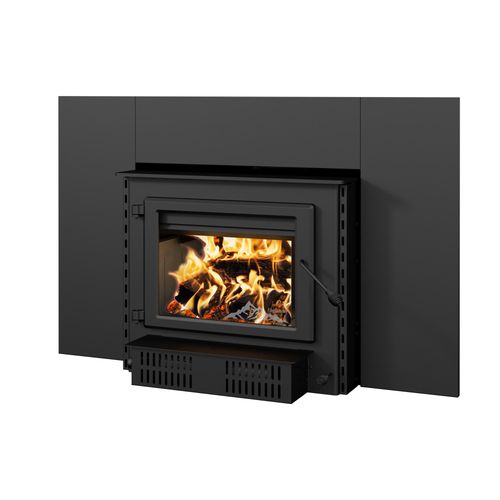

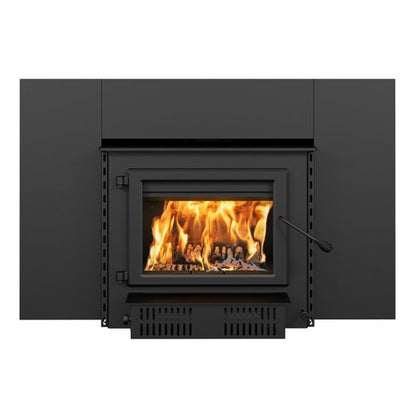

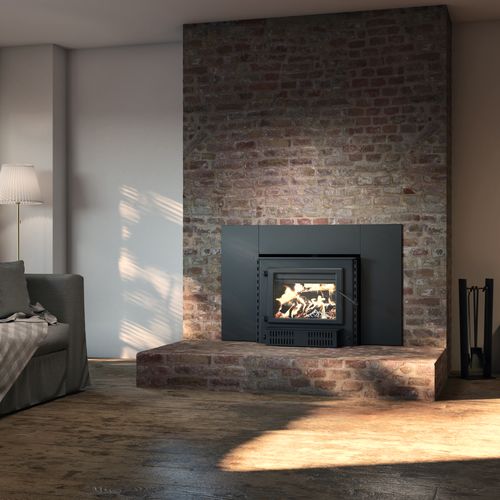

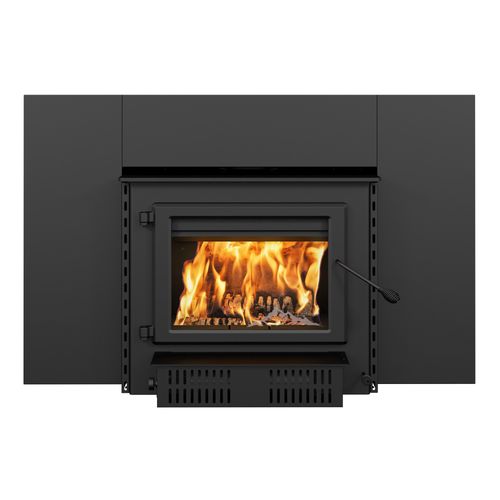

Englander Blue Ridge 500-I Wood Insert
Englander Blue Ridge 500-I Wood Insert
- Free Shipping
- No Sales Tax
- Price Match
- Secure Checkout
Add your venting
Everything needed to line the chimney and connect your insert — 25 ft 304L stainless flex liner, ...
+ $449.00
Same insert liner kit with a 35 ft liner for taller chimneys. Measure from the insert's flue outl...
+ $559.00Product Documents
Overview
The Blue Ridge 500-I Wood Insert is a high-efficiency, EPA-certified wood insert built by England's Stove Works in the USA. With a 3.5 ft³ firebox it heats 1,000 to 2,700 ft² and burns up to 10 hours on a single load.

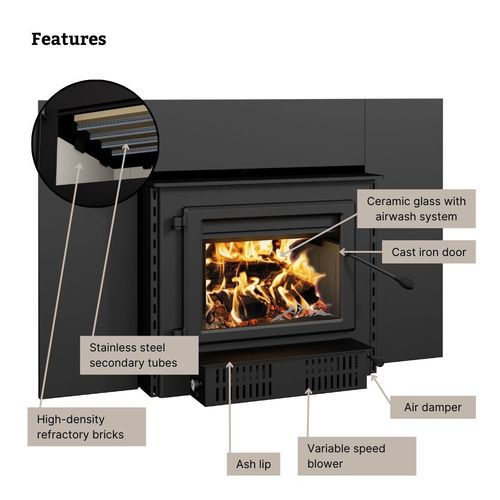

Our largest wood insert. Heats large open spaces with a very large combustion chamber. Includes adjustable faceplate, air intake damper, and 144 CFM variable-speed blower with thermodisc.
Specifications
- Heating area: 1,000 to 2,700 ft²
- Maximum heat output: 110,000 BTU/h
- Firebox volume: 3.5 ft³
- Maximum burn time: up to 10 hours
- Efficiency: up to 77%
- Particulate emissions: 1.6 g/h
- Max log length: 22"
- Flue collar: 6" round
- EPA 2020 certified · Non-catalytic · Made in USA
- Heats 1,000 to 2,700 sq ft with 110,000 BTU/h maximum output
- EPA 2020 certified at 1.6 g/h average particulate emissions
- 77% optimum efficiency — our largest wood insert
- Up to 10 hours burn time — 3.5 cu ft firebox
- Includes adjustable faceplate
- 144 CFM variable-speed blower with thermodisc included
- Very large combustion chamber for large open spaces
- Proudly made in USA — Limited Lifetime Warranty

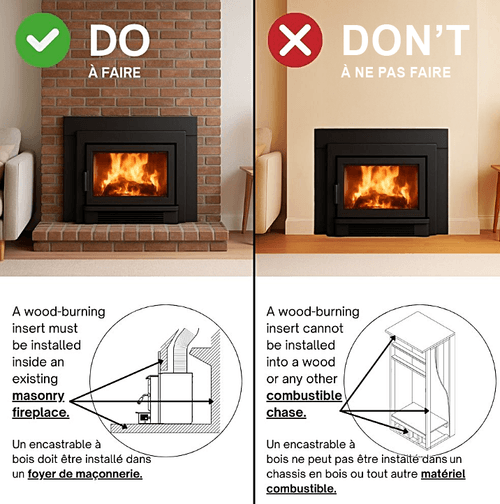

Installation
Clearance Requirements
| Requirement | |
|---|---|
| Min. clearance – adjacent side wall (F) | 19" (483 mm) |
| Min. clearance – combustible side surround (G) | 9" (229 mm) |
| Min. clearance – combustible top surround (H) | 27" (686 mm) |
| Min. clearance – top surround to mantel (I) | 27" (686 mm) |
| Min. clearance – to combustible mantel shelf (Q) | 84" (213 cm) |
| Min. masonry opening – height (J) | 26 1/4" (660 mm) |
| Min. masonry opening – width (K) | 31" (787 mm) |
| Min. masonry opening – depth (L) | 18 3/8" (457 mm) |
| Floor protection – front of door | 18" (457 mm) (CAN) / 16" (406 mm) (US) |
Specifications Show details Hide details
Specifications
| Fuel Type | Dry cordwood (22" maximum) |
|---|---|
| Heating Area | 1,000 - 2,700 sq ft |
| Maximum Heat Output | 110,000 BTU/h |
| Firebox Volume | 3.5 cu ft |
| EPA Emissions | 1.6 g/h |
| Optimum Efficiency | 77% |
| Max Burn Time | 10 hours |
| Maximum Log Length | 22" |
| Flue Outlet Diameter | 6" |
|---|---|
| Blower | 144 CFM variable-speed with thermodisc |
| Faceplate | Adjustable (included) |
| Combustion Type | Non-catalytic |
| Certification | EPA 2020 Certified |
| Origin | Made in USA |
| Warranty | Limited Lifetime |
Shipping & Returns
Free freight shipping on orders over $250 · ships in 1–3 business days · curbside delivery.
Free shipping on orders over $250 to the continental US.
Ships via LTL (Less Than Truckload) freight – carriers include XPO Logistics, Estes Express, ABF Freight, Old Dominion, and FedEx Freight. Transit time is typically 3–10 business days from ship date. The carrier will call to schedule a delivery appointment.
Curbside delivery only. The driver will lower your order to the curb or end of your driveway via liftgate. This does not include bringing the item inside, carrying up stairs, or crossing uneven terrain.
Have an appliance dolly and an extra person available on delivery day. Need inside or threshold delivery? Contact us before ordering.
Inspect before signing. Before signing the Bill of Lading (BOL), check for any visible packaging damage. Write "DAMAGED" or "Subject to inspection" on the BOL if anything looks off.
Contact us within 5 business days of delivery. Open and fully inspect your item within 48 hours.
Returns. Unused, uninstalled units in original packaging can be returned within 30 days. Appliance returns are subject to a $300 return freight charge plus a 15% restocking fee. Units that have been fired or installed cannot be returned. Accessories and parts carry a 15% restocking fee.
